Aluminum 4X4" Mounting Load Distribution Plates - Set of 4
$36.00
- Description
- Specifications
ALUMINUM 4X4" MOUNTING LOAD DISTRIBUTION PLATES - SET OF 4
We developed these plates especially to mount heavier equipment on wood decks that may become damaged from use in harsh chemical or weather conditions often encountered in industries such as oil and gas, exterior cleaning, construction, waste management, landscaping, agriculture, fleet cleaning, transportation, marine environments, and more.
- The plates are especially useful when:
- harsh conditions cause trailer or truck beds to deteriorate quickly allowing regular washers and bolts to come through the bed, thus failing to hold the equipment.
- traveling on roads where equipment is subjected to strong sideways or back to front movements that can pull regular washers and bolts through the bed, causing equipment to come loose.

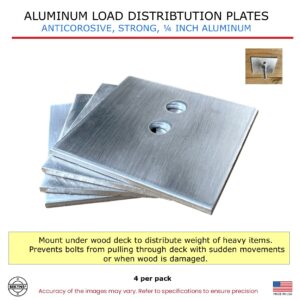

- 4" wide x 4"long x 1/4" thick (3 Gauge) heavy duty and anti-corrosive aluminum

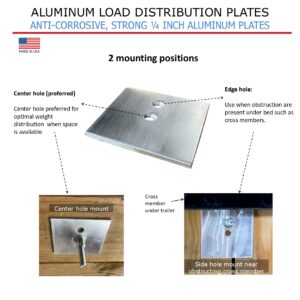

- Proprietary design with 2 holes 1/2" each for more options in placing equipment:
- Center hole is preferred hole for best weight distribution

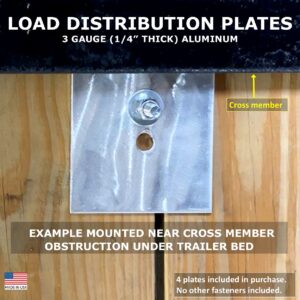

- The hole closer to the edge allows you to install the plate close to obstructions under the trailer or truck beds (for example cross members)

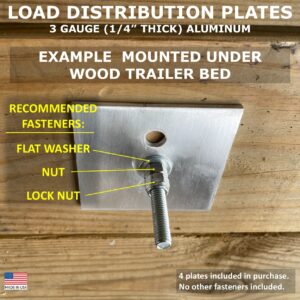

- We recommend 3/8" bolts, flat washers, nuts, and nyloc.
- Hand finished and individually inspected for quality
- 4 Plates in each order
- Other fasteners (such as washers, bolts, nuts) not included with purchase

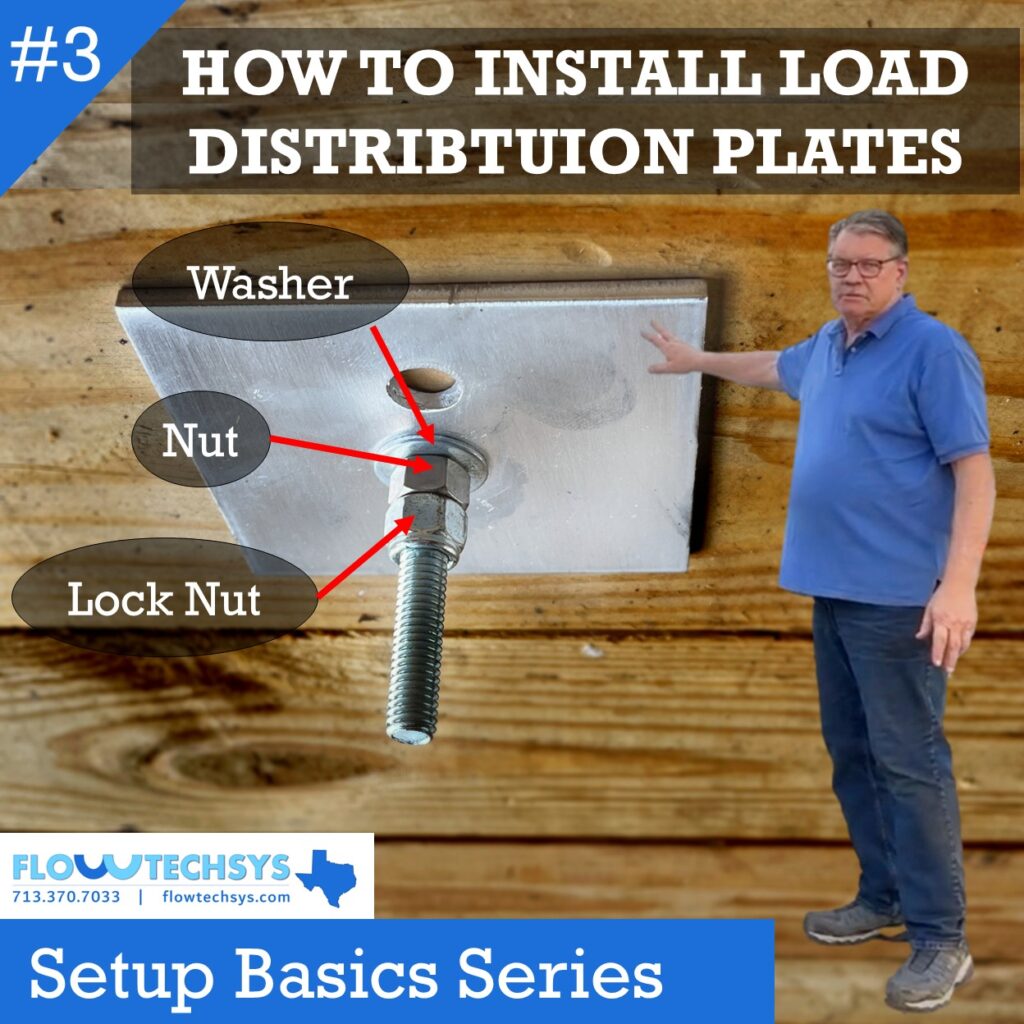

Installation Videos: Here and Here.
Shipping: Typically ships within two business days.
Interested in a custom size or a larger order? Call us at 713-370-7033 or email us at sales@flowtechsys.com.
Designed and fabricated in our Houston, TX facilities. Brackets
Dimensions:
- 4"w x 4"l x 1/4" h
- 2 x 1/2" mounting holes
Material
- 3 Gauge (1/4 inch thick) corrosion resistant aluminum
Recommended hardware
- 3/8" bolts - select the length that works best for your application
- 3/8" flat washers
- 3/8" nuts
- 3/8" Nyloc nuts
