Hygea 20HLP Skid - Low Profile 20 GPM Hot Pressure Washing System
- Description
- Specifications
HYGEA HOT HIGH FLOW INDUSTRIAL EXTERNAL CLEANING SERIES

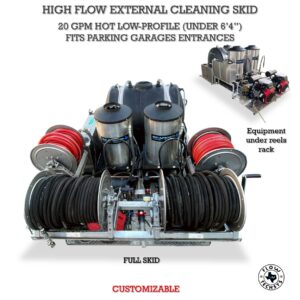

HYGEA 20HLP SKID

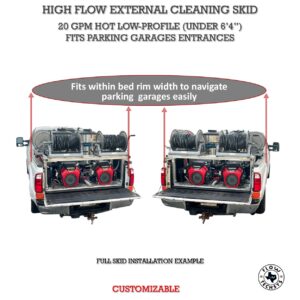

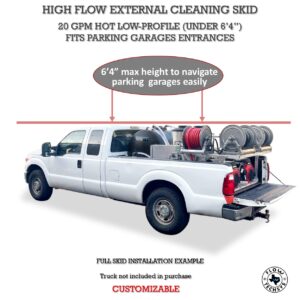

Sits below 6'4" and within standard 8' pickup truck footbed to navigate parking garage with ease and maximize productivity.
Works as complete unit or with our reclaim & recycling rigs when reclaiming waste waters is required by local regulations.
Up to 4 operators can clean at the same time.
Equally productive for parking lots and industrial facilities.
With over 20 years in the business of building and servicing water and chemical treatment systems of all kinds, we've learned a few things about component reliability, durability, and serviceability. We select all components and materials carefully, and pay close attention to details, to build highly efficient, productive, and long-lasting rigs.
Built To Order and customizable.
Time to build: 15-30 business days depending customizations and equipment availability.
- Aluminum Skid
- Sits flat on floor of standard 8 ft pick up bed or on a trailer if preferred.
- Removable hose reel rack: gives access to work on equipment for maintenance or repairs.
- Skinny aluminum rack above wheel for one of the fuel tanks, allows setup to remain within bed footprint.
- Aluminum and stainless steel brackets, straps, and fasteners throughout for better corrosion control.
- Equipment
- 2 x 10 GPM Hot water PW - w/Customized stands to remain at height requirements below 6'4".
- IGX800 Honda engines, gear drive because of bed space limitations.
- TSF2221 10 GPM General Pumps.
- 2 x Vertical hotboxes w/Becket burners (better heat, smaller footprint).
- Custom easy-access hot box controls: built to attach on top of bed edge for easy access.
- Controls wired into engine: when shut engines off you don't have to worry about killing the battery by having the blower still running on burner.
- Custom feed and drain manifold - 1.5" single drain and feed line off the tank, split, taken into a custom mount that goes into 2 filters and valves, that feed the two pumps.
- Custom easy-access oil drains: extended to go over the sides of the bed to avoid getting oil on bed when draining.
- 225 gal horizontal leg buffer tank.
- 2 x water hose inlet to keep up with high water flow needs.
- 1" drain line.
- Auto shut off valve.
- 2 x garden hoses on 12" Hannay manual steel hose reels on each side.
- When using unit alone hoses connect directly to spigots.
- When using with reclaim & recycle rig, they tie in to pumps in recycle system.
- 2 x 200 1/2" pressure hoses on 18" Hannay manual steel hose reels.
- 2 x 10 GPM Hot water PW - w/Customized stands to remain at height requirements below 6'4".
- Payload and length requirements
- Minimum payload of 7000 lbs and bed must be at least 8 ft long.
- Customization options (pricing will vary accordingly)
- Substitute Hannay manual reels for Electric Titan reels.
- Substitute Hannay for Titan Aluminum reels (manual or electric)
- Add Lights: flood, in tank, LED.
- Substitute 10 GPM power washers for 8 GPM.
- Reduce to only 1 hot box for one of the Pressure washers.
- Increase skid length and tank size (only possible for trailers longer than 8 ft)
- Place reels at end of longer trailer instead of on top of equipment (only possible for trailers longer than 8 ft)
Manufacturer guarantees on all components.
Truck not included in purchase.

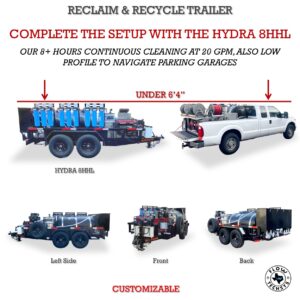

Designed to work seamlessly with the Hydra 8HHL Reclaim and Recycle trailer
Questions, customizations, financing, ready to order? call, or text us at 713-370-7033 or email us at sales@flowtechsys.com or use inquiry form.
